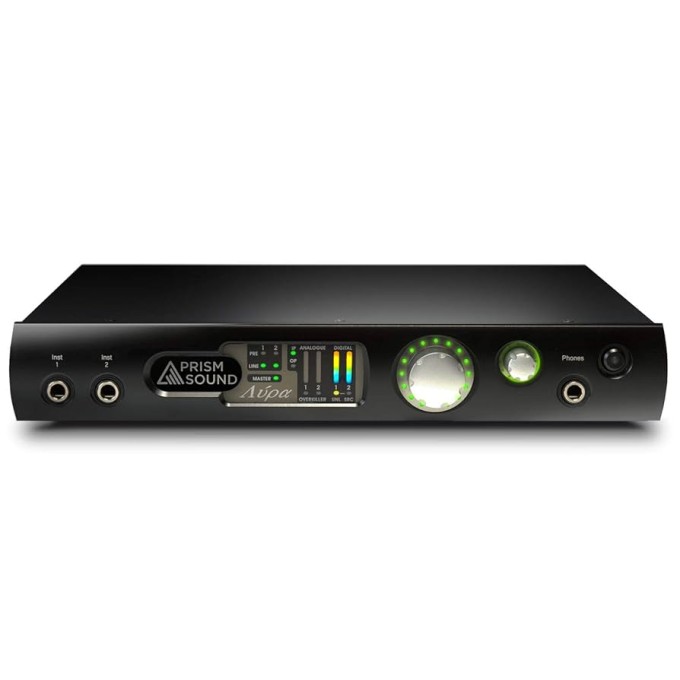

Lyra 2 Reference Grade Compact Audio Interface

Περιγραφή

Prism Lyra-2

Specifications

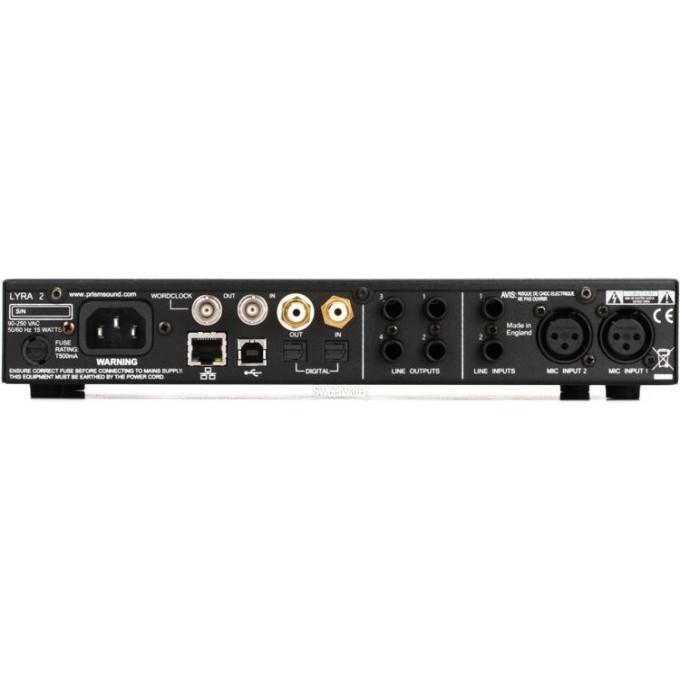

2 A/D Analogue input channels select from:

• 2 x Microphone XLR inputs with phantom power and 20dB pads
• 2 x High-impedance front panel instrument inputs
• 2 x Balanced line inputs on TRS jack
• 4 D/A Analogue Line Output channels
• Headphone output with independent mix and volume control
• S/PDIF Digital in and out on RCA/phono
• S/PDIF / ADAT Digital in and out on TOSLINK optical
• AES3 mode on RCA/Phono with supplied XLR adaptor
• Word-clock sync I/O on BNC connectors
• Sample rate conversion on digital inputs or outputs
• Ethernet port for future expansion

Features:

• No-compromise, full Prism Sound audio quality
• Class compliant (UAC2) USB interface
• ASIO drivers for Windows (32 and 64bit)
• Windows WDM drivers for Vista and later
• Native CORE AUDIO on Mac OS X
• UAC2 operation on Linux (no control panel)
• Outputs selectable between workstation bus or Lyra mixer
• Prism Sound SNS noise shaping on digital outputs (4 curves)

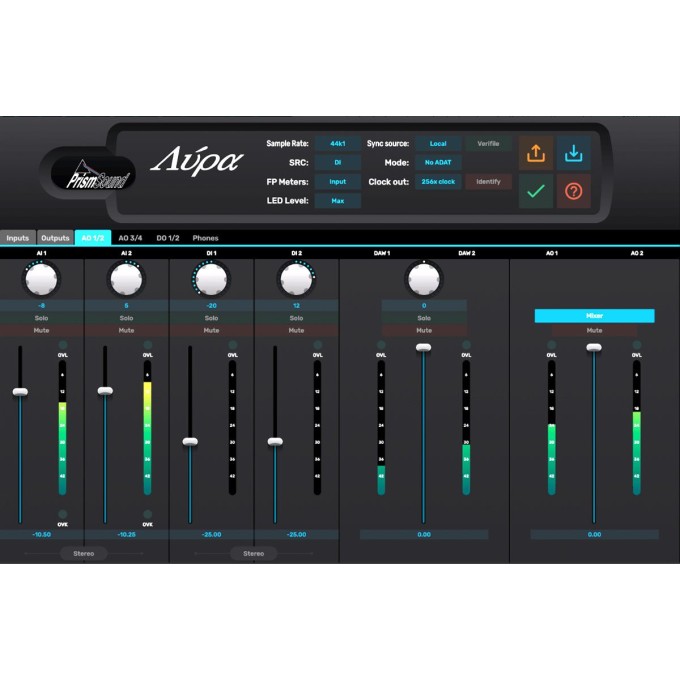

• Low-latency “console-quality” digital mixer for foldback monitoring
• Fader, pan, cut, solo on every mixer channel
• Front-panel master volume control, assignable to selected channels
• State-of-the-art clock generation with proprietary hybrid 2-stage DPLL
• Fully-floating (isolated) balanced architecture for optimum noise rejection
