Prism Sound Dream ADA-128-Mainframe
Έως 12
Άτοκες Δόσεις
εγγύηση
Περιγραφή

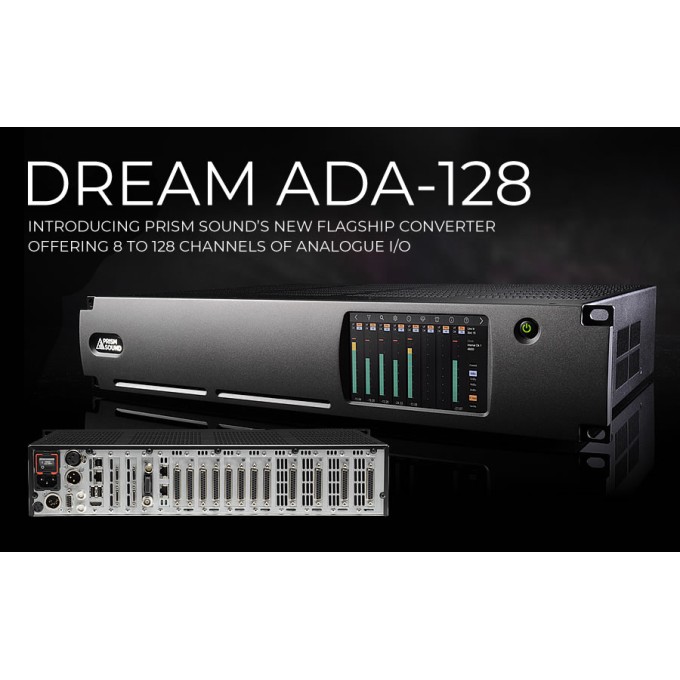

A new breed of audio converter has arrived: Prism Sound’s Dream ADA-128.
The Dream ADA-128 redefines flexibility, capacity, and performance standards in professional audio conversion. In creating it, we ripped up the rule book and started again, using all our 30+ years of ADC and DAC development experience. Building on the legacy of the Prism Sound Dream ADA-8XR, the resulting Dream ADA-128 architecture is so capable that it is set to meet the needs of the most demanding facilities for years to come.

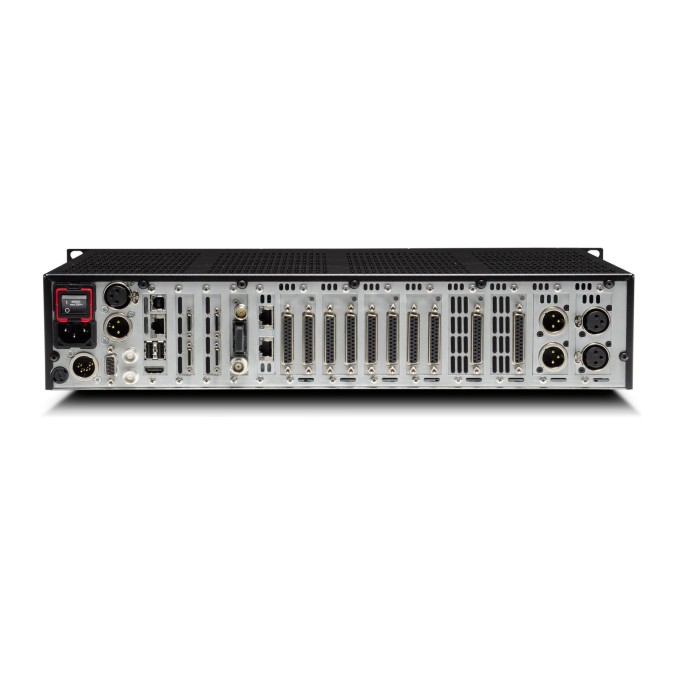

he Dream ADA-128 is a 2U chassis that can accommodate up to 20 plug-in Modules. These presently include eight-channel analogue input and output Modules and an eight-channel AES3 Module. Four of the slots can accommodate a range of 64-channel Host Modules which include Pro Tools HDX and Dante Host Modules (and more to come). As well as being able to route analogue and AES3 I/O to and from Host media, full routing flexibility allows analogue to/from AES3 routing without use of Host slots, and Host-to-Host bridging.
The Dream ADA-128 contains four independent clock generators, each of which can run at different sample rates and with different sync sources. The ADA-128’s Host and I/O Modules can be dynamically assigned to these Clock Domains, allowing multiple workflows (such as separate project studios or ingest stations) to simultaneously share the resources of a single ADA-128’s resources.
Every I/O Module, as well as the unit’s built-in Routing Module, have dedicated DSP capability, which will allow a wide range of future functionality to be added by a simple software download.
These and many other unique capabilities make the Dream ADA-128 the only box you will ever need, no matter what your application.
ΖΗΤΗΣΤΕ ΤΙΜΗ ΜΕ ΤΗΝ ΚΑΡΤΑ ΠΟΥ ΧΡΕΙΑΖΕΣΤΕ !
The Line in card is an 8-channel analogue input expansion card for the Dream ADA-128
Key Features
- 8 high-quality analog inputs with premium analogue circuitry
- Ultra-low latency state-of-the-art analogue-to-digital conversion
- Expand the analog inputs on the chassis or swap out cards for customised configurations
Mic/Line Card
This Mic/Line card is an 8-channel analogue input expansion card for the Dream ADA-128, designed for both microphone and line-level sources. For line-only applications, we recommend using the dedicated Line Input Card.
Key Features
- 8 high-quality analogue inputs with premium mic preamps and analogue circuitry
- Ultra-low latency, state-of-the-art analogue-to-digital conversion
- Expand the analogue inputs on the chassis or swap out cards for customised configurations.
The Line out card is an 8-channel analogue output expansion card for the Dream ADA-128
Key Features
- 8 high-quality analogue outputs with premium analogue circuitry
- Ultra-low latency state-of-the-art digital-to-analogue conversion
- Expand the analogue outputs on the chassis or swap out cards for customised configurations
Pro-Tools, DANTE, AES
The ability to support up to four digital host cards including Pro-Tools, DANTE, AES and many more in a modular form ensures the ADA-128 is a future-proof solution for all your requirements.
The ADA-128 Dante Card offers low latency, high channel count connectivity with 64 channels (64×64) of bidirectional audio. The card allows high-channel digital splits between systems. A simple ethernet cable can easily connect an ADA-128 to your system, unleashing the power of audio over IP.
AES CARD-The modular architecture of the 16 I/O slots can also support 8 channels of AES per slot, allowing you even further flexibility to configure the ADA-128 to meet the needs of your system.
The Dream ADA MADI Card offers high-channel-count (Each card supports up to four SFP modules, providing incredible flexibility for digital audio routing), low-latency connectivity with up to 64×64 channels at 192kHz, unmatched by any competitor. Key Features:
- Supports up to 4 SFP modules per card for scalable I/O
- Two SFP variants are available: MADI-SFP_Coax (Coaxial) & MADI-SFP_Opt (Optical)
- When run at 48kHz and 96kHz, additional SFPs can be used to provide ‘out the box’ redundant MADI transmission
- Mix and match Optical & Coaxial SFPs on a single card with each SFP module providing a (mode dependant) maximum of: 64×64 channels at 48kHz, 32×32 channels at 96kHz or 16×16 channels at 192kHz
* Note – irrespective of sample rate the maximum channel could per card is 64×64 channels.
The “9 Pin multi clock lead” is an optional accessory.
Additional sync connections are required to utilize ADA-128s multiple clock domains. Please add this to your request, if you wish to purchase this cable with your Dream ADA-128 unit.
ΖΗΤΗΣΤΕ ΤΙΜΗ ΜΕ ΤΗΝ ΚΑΡΤΑ ΠΟΥ ΧΡΕΙΑΖΕΣΤΕ !
